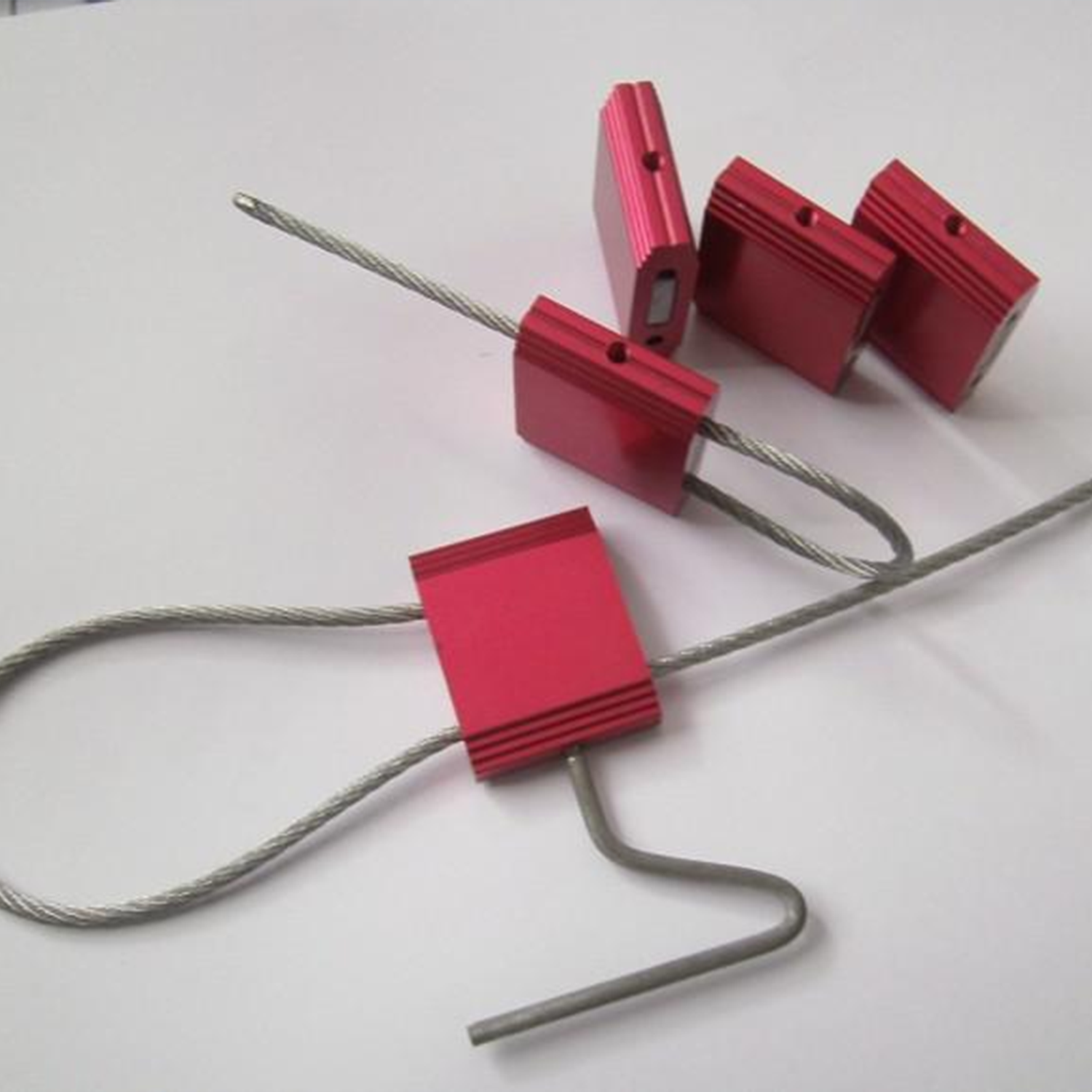

CABLE SEALS [ #C12C]
Description
Related products
CABLE SEALS [ #C05 ]
Material
ABS plastic cover
Q235A steel wire
Specification
1.8mm cable diameter,length 180mm or customized
Printing & Marking
Laser / Hot foil
Name / Logo
Sequential Numbering
Applications
Container / Trucks
Refineries
Oil Tankers
Properties
Average Breaking Strength : >200kgs
Temperature: - 40℃ to 110℃
Packing:
Packaging:1000pcs/Carton
Carton Dimensions: 325X210X215mm
G.W : 17KG
N.W : 16KG
CABLE SEALS [ #C06 ]
Material
The lock housing is iron and covered with ABS
The wire is galvanized cable
Specification
1.8mm cable diameter ,length 200mm(or customized)
Printing & Marking
Laser / Hot foil
Name / Logo
Sequential Numbering
Applications
Container / Trucks
Refineries
Oil Tankers
Properties
Average Breaking Strength : >400kgs
Temperature: - 40℃ to 110℃
Packing
Packaging:1000pcs/Carton
Carton Dimensions: 325X210X215mm
G.W : 17KG
N.W : 16KG
CABLE SEALS [ #C00-1.0 ]
Material
Body – Aluminium
Cable – Steel Cable
Dimension
1.0mm cable diameter
Housing:26mmX18mmX6mm
Printing & Marking
Laser
Name / Logo
Sequential Numbering
Applications
Container / Trucks
Refineries
Oil Tankers
Properties
Average Breaking Strength : 400kg
Temperature: - 40℃ to 110℃
Packing
1000pcs/carton
Carton Dimensions: 250X250X130mm
CABLE SEALS [ #C17D ]
Material
The lock housing is iron and covered with ABS
The wire is NPC galvanized cable
Specification
1.8mm cable diameter,length 200mm or customized
Printing & Marking
Laser
Name / Logo
Sequential Numbering
Applications
Container / Trucks
Refineries
Oil Tankers
Properties
Average Breaking Strength : >300kgs
Temperature: - 40℃ to 110℃
Packing
Box: 31x32x12mm
Packaging: 1000pcs/Carton
Carton Dimensions: 400X300X150mm
G.W : 18KG
N.W : 17KG
CABLE SEALS [ #C15 ]
Material
Body – Aluminium
Cable – Steel Cable
Specification
3.0mm cable diameter, housing 35mm X35mmX8mm
Printing & Marking
Laser
Name / Logo
Sequential Numbering
Applications
Container / Trucks
Refineries
Oil Tankers
Properties
Average Breaking Strength : >800kgs
Temperature: - 40℃ to 110℃
Packing
Packaging:500pcs/Carton
Carton Dimensions: 280X250X180mm
G.W: 16KG
N.W: 15KG
CABLE SEALS [ #C16 ]
Material
Body – Aluminium
Cable – Steel Cable
Specification
1.5mm/2.0mm/2.5mm/3.0mm cable diameter,7X7 galvanized steel aircraft cable
Printing & Marking
Laser
Name / Logo
Sequential Numbering
Applications
Container / Trucks
Refineries
Oil Tankers
Properties
Average Breaking Strength : >800kgs
Temperature: - 40℃ to 110℃
Packing
Packaging:500pcs/Carton
Carton Dimensions: 370X370X150mm
G.W : 16KG
N.W : 15KG
