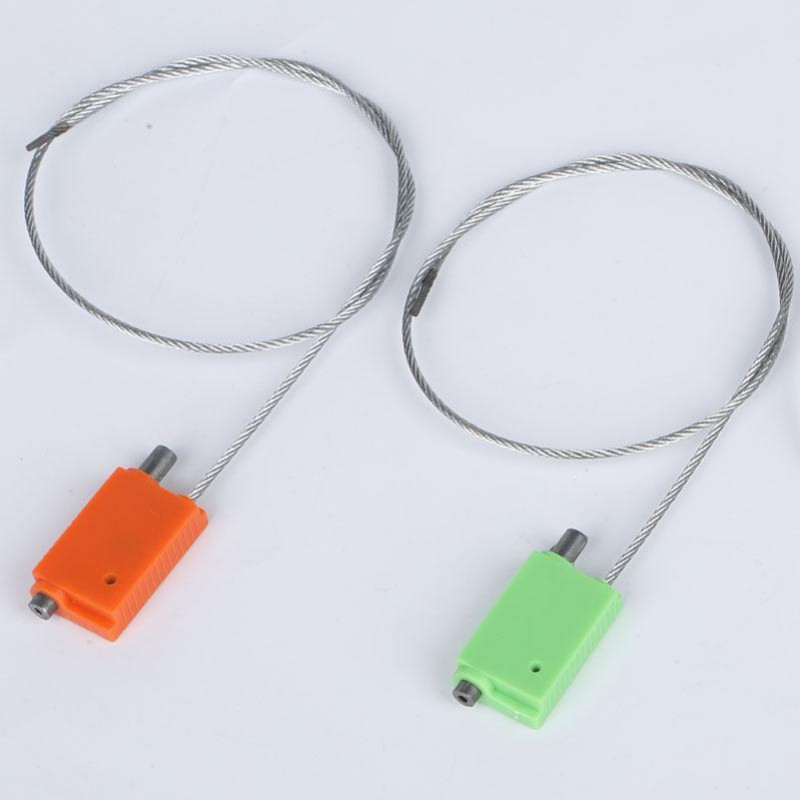

CABLE SEALS [ #C17D ]
Material
The lock housing is iron and covered with ABS
The wire is NPC galvanized cable
Specification
1.8mm cable diameter,length 200mm or customized
Printing & Marking
Laser
Name / Logo
Sequential Numbering
Applications
Container / Trucks
Refineries
Oil Tankers
Properties
Average Breaking Strength : >300kgs
Temperature: – 40℃ to 110℃
Packing
Box: 31x32x12mm
Packaging: 1000pcs/Carton
Carton Dimensions: 400X300X150mm
G.W : 18KG
N.W : 17KG
Description
